Replaces 236916

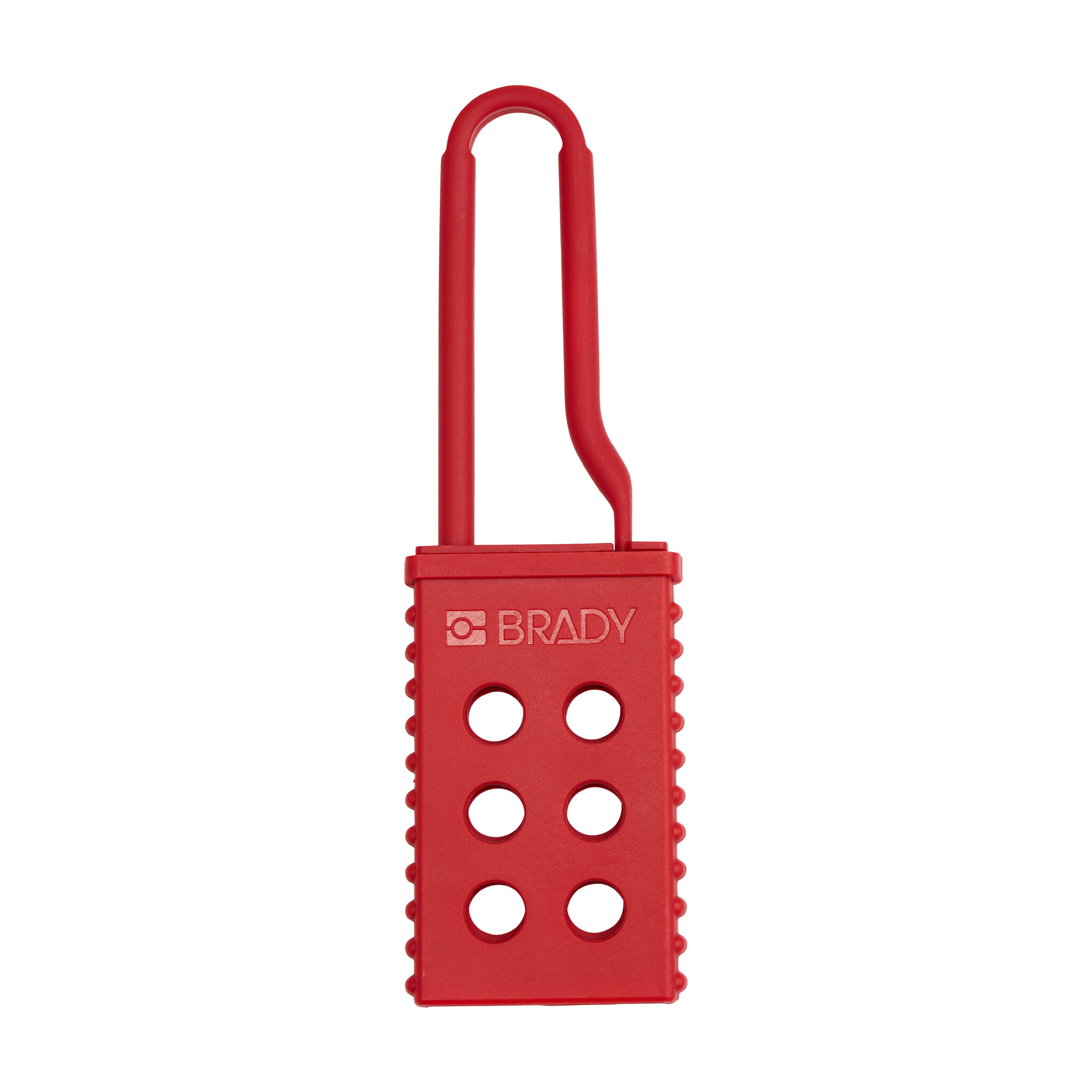

The Brady Non-Conductive Lockout Hasp (325581) is a lightweight group Lockout-Tagout device made from glass-filled nylon. It allows multiple employees to secure the same energy-isolation point while providing non-conductive properties for applications where electrical hazards are a consideration.

Key Benefits & Specifications

• 6 padlock holes - Accommodates up to six safety padlocks for group lockout.
• Strong, lightweight construction - Weighs 25 g and is specified by Brady to withstand up to 46 kg.
• Non-conductive material - Made from glass-filled nylon with electrical insulating characteristics.
• Body dimensions - 45.11 x 154.89 x 13.21 mm.
• Padlock hole diameter - 9.53 mm.
• Inside jaw size - 14.61 mm.
• Temperature resistance - Service range of -20°C to +80°C.

Practical Applications

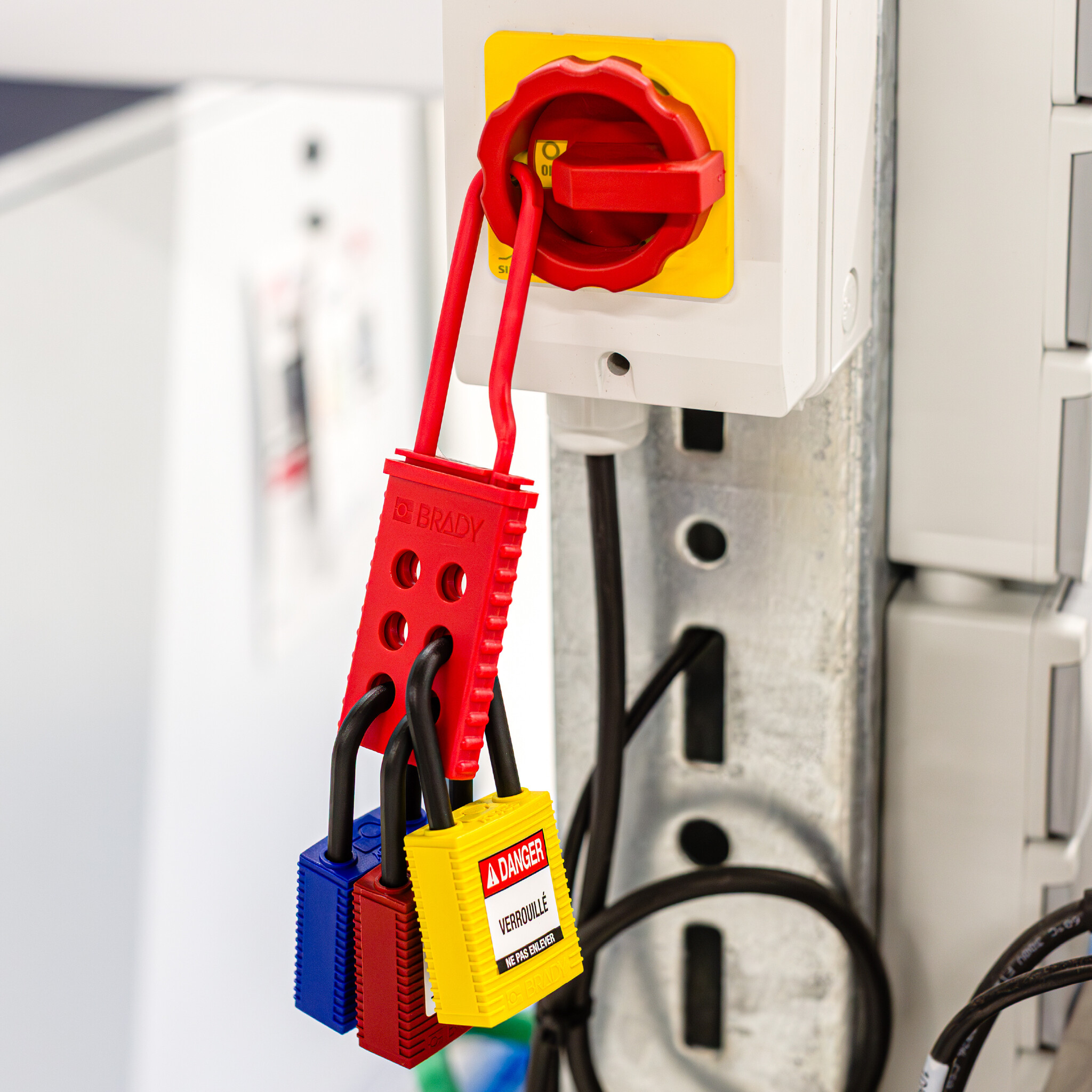

Designed primarily for group Lockout-Tagout, the hasp allows several authorized employees to apply individual safety padlocks to one isolation point. Brady specifically identifies switch and fuse protection as an associated application.

It can be used for electrical maintenance, machine servicing, equipment isolation, and other LOTO procedures where multiple personnel or non-conductive lockout equipment are required.

Safety Standards & Compliance

Designed for Lockout-Tagout applications, including switch and fuse protection. Specific ATEX suitability and current RoHS and REACH compliance should be confirmed directly before use.
