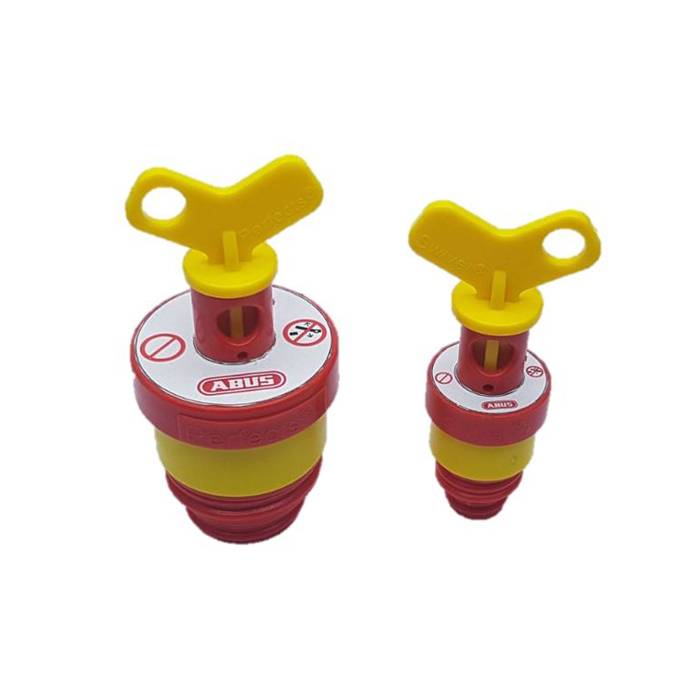

Insulation plugs forbottle fuses with lockout possibility with padlock E218 - E233

Article code 83677

€45,00

(€54,45 Incl. tax)

Article code 83677

Type

Buy 5 for €43,88 each and save 2,5%
Buy 10 for €42,75 each and save 5%
Buy 15 for €41,63 each and save 7,5%
Buy 20 for €40,50 each and save 10%

- +

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Prefer a quote first? Click on "request quote" in your shopping cart

Description
- Securing the fuse socket in case of maintenance.
- Not possible to mistakenly or unintentionally screw in bottle fuses.
- Thanks to stepwise tread diameters each of these lockout devices covers two common threads of DIAZED/NEOZED fuses:

  E218 - E14 or E18 (NEOZED D01+D02)
  E233 - E27 or E33 (DIAZED DII+DIII)
- Suitable for LOTO application. In comparison to many competition products, with hole to insert a padlock with up to 6.5 mm shackle diameter.
- Inlcuding yellow special key to apply and remove the device can be stored at the padlock shackle as needed.
- Hence, you can attach an appropriate lock with flexible cable in order to secure several bottle fuses in a row.
- With corresponding warning label „Do not operate“-sticker with common warning signs and ABUS branding.
Neozed Type Dim. Amperage (A) Voltage (V) Article

D01 E14 2, 4, 6, 10, 16 400 Vac 83677

D02 E18 20, 25, 30, 35, 40, 50, 63 400 Vac 83677

Diazed Type Dim. Amperage (A) Voltage (V) Article

DII, KII E27 2, 4, 6, 10, 16, 20, 25, 30, 35 500 Vac 83680

DIII, KIII E33 35, 40, 50, 63 500 Vac 83680

Specifications

Material:	Nylon
Padlock holes:	1
Temperature range:	-4°C to +121 °C
Dimension:	Multiple
ATEX certified:	-
Suitable for:	E14, E18, E27 or E33
Chemical resistant:	Yes
Non-conductive:	Yes
Color:	Red and yellow

Add your review
0 stars based on 0 reviews

Securing the fuse socket in case of maintenance.
Not possible to mistakenly or unintentionally screw in bottle fuses.
Thanks to stepwise tread diameters each of these lockout devices covers two common threads of DIAZED/NEOZED fuses:

E218 - E14 or E18 (NEOZED D01+D02)
E233 - E27 or E33 (DIAZED DII+DIII)
Suitable for LOTO application. In comparison to many competition products, with hole to insert a padlock with up to 6.5 mm shackle diameter.
Inlcuding yellow special key to apply and remove the device can be stored at the padlock shackle as needed.
Hence, you can attach an appropriate lock with flexible cable in order to secure several bottle fuses in a row.
With corresponding warning label „Do not operate“-sticker with common warning signs and ABUS branding.

Neozed Type	Dim.	Amperage (A)	Voltage (V)	Article
D01	E14	2, 4, 6, 10, 16	400 Vac	83677
D02	E18	20, 25, 30, 35, 40, 50, 63	400 Vac	83677

Diazed Type	Dim.	Amperage (A)	Voltage (V)	Article
DII, KII	E27	2, 4, 6, 10, 16, 20, 25, 30, 35	500 Vac	83680
DIII, KIII	E33	35, 40, 50, 63	500 Vac	83680

Material:	Nylon
Padlock holes:	1
Temperature range:	-4°C to +121 °C
Dimension:	Multiple
ATEX certified:	-
Suitable for:	E14, E18, E27 or E33
Chemical resistant:	Yes
Non-conductive:	Yes
Color:	Red and yellow
